Komodo.Core.ECS.Components.TextComponent Class Reference

Represents any 2D text to be drawn in a Komodo.Core.ECS.Systems.Render2DSystem More...

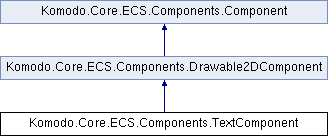

Inheritance diagram for Komodo.Core.ECS.Components.TextComponent:

Public Member Functions
	TextComponent (SpriteFont font, Color color, Effect shader, string text=null)
	Creates a TextComponent with a given Microsoft.Xna.Framework.Graphics.SpriteFont. More...
	TextComponent (string fontPath, Color color, Effect shader, string text=null)
	Creates a TextComponent with a filepath to a compiled Microsoft.Xna.Framework.Graphics.SpriteFont content file. More...

Public Attributes
override Vector2	Center => new Vector2(Width / 2, Height / 2)

Properties
Color	Color [get, set]
SpriteFont	Font [get, set]
	Raw font data loaded from disk. More...
string	FontPath [get, set]
	Path of the Microsoft.Xna.Framework.Graphics.SpriteFont if the TextComponent was provided a font filepath via TextComponent.TextComponent(string, Color, Effect, string). More...
override float	Height [get]
	Y dimensional extremity. More...
bool	IsCentered [get, set]
	Flags whether or not to draw the TextComponent with the center or the top-left side as origin. More...
string	Text [get, set]
	Text message to be rendered. More...
override float	Width [get]
	X dimensional extremity. More...
Properties inherited from Komodo.Core.ECS.Components.Drawable2DComponent
abstract Vector2	Center [get]
	Center point of the rendered Component. More...
abstract float	Height [get]
	Height of the rendered Component. More...
bool	IsBillboard [get, set]
	Flags whether or not to draw the Drawable2DComponent as a billboard in 3D space, always facing the relevant Komodo.Core.ECS.Components.CameraComponent. More...
Effect	Shader [get, set]
	Shader to use when rendering the Component. If Shader is null, the Komodo.Core.Game.DefaultSpriteShader will be used. More...
abstract float	Width [get]
	Width of the rendered Component. More...
Properties inherited from Komodo.Core.ECS.Components.Component
Game?	Game [get]
	Each Component maintains a reference to the Komodo.Core.Game instance. More...
Guid	ID [get]
	Unique identifier for the Component. More...
bool	IsEnabled [get, set]
	Enabled Components are managed by their corresponding Komodo.Core.ECS.Systems.ISystem, otherwise the Component is ignored. More...
bool	IsInitialized [get, set]
	Uninitialized Components are initialized by their corresponding Komodo.Core.ECS.Systems.ISystem, otherwise the Component is initialized on the next Komodo.Core.ECS.Systems.ISystem.Initialize, Komodo.Core.ECS.Systems.ISystem.PreUpdate, or Komodo.Core.ECS.Systems.ISystem.PostUpdate methods. More...
Entity	Parent [get, set]
	Each Component belongs to a Komodo.Core.ECS.Entities.Entity and maintains a reference to the parent Komodo.Core.ECS.Entities.Entity. More...
Vector3	Position [get, set]
	Each Component has a position relative to their Parent. More...
Vector3??	WorldPosition [get]
	The sum of Position and the Parent's Komodo.Core.ECS.Entities.Entity.Position, representing the Component's position in world space. More...
Vector3??	Rotation [get, set]
	Derived from the Parent's Komodo.Core.ECS.Entities.Entity.Rotation. More...
Matrix??	RotationMatrix [get]
	Derived from the Parent's Komodo.Core.ECS.Entities.Entity.RotationMatrix. More...
Quaternion??	RotationQuaternion [get]
	Derived from the Parent's Komodo.Core.ECS.Entities.Entity.RotationQuaternion. More...
Vector3??	Scale [get, set]
	Derived from the Parent's Komodo.Core.ECS.Entities.Entity.Scale. More...

Additional Inherited Members
Protected Member Functions inherited from Komodo.Core.ECS.Components.Drawable2DComponent
	Drawable2DComponent (bool isEnabled=true, Entity parent=null)
Protected Member Functions inherited from Komodo.Core.ECS.Components.Component
	Component (bool isEnabled=true, Entity parent=null)

Detailed Description

Represents any 2D text to be drawn in a Komodo.Core.ECS.Systems.Render2DSystem

Constructor & Destructor Documentation

TextComponent() [1/2]

Komodo.Core.ECS.Components.TextComponent.TextComponent	(	SpriteFont	font,
		Color	color,
		Effect	shader,
		string	text = null
	)

Creates a TextComponent with a given Microsoft.Xna.Framework.Graphics.SpriteFont.

Parameters

font	SpriteFont reference containing the raw font data.
color	Color for each glyph to be drawn with.
shader	Shader used for rendering in a Microsoft.Xna.Framework.Graphics.SpriteBatch.
text	Text message to be rendered.

TextComponent() [2/2]

Komodo.Core.ECS.Components.TextComponent.TextComponent	(	string	fontPath,
		Color	color,
		Effect	shader,
		string	text = null
	)

Creates a TextComponent with a filepath to a compiled Microsoft.Xna.Framework.Graphics.SpriteFont content file.

Parameters

fontPath	File path to a compiled Microsoft.Xna.Framework.Graphics.SpriteFont content file.
color	Color for each glyph to be drawn with.
shader	Shader used for rendering in a Microsoft.Xna.Framework.Graphics.SpriteBatch.
text	Text message to be rendered.

Property Documentation

Font

SpriteFont Komodo.Core.ECS.Components.TextComponent.Font

getset

Raw font data loaded from disk.

FontPath

string Komodo.Core.ECS.Components.TextComponent.FontPath

getset

Path of the Microsoft.Xna.Framework.Graphics.SpriteFont if the TextComponent was provided a font filepath via TextComponent.TextComponent(string, Color, Effect, string).

Height

override float Komodo.Core.ECS.Components.TextComponent.Height

get

Y dimensional extremity.

IsCentered

bool Komodo.Core.ECS.Components.TextComponent.IsCentered

getset

Flags whether or not to draw the TextComponent with the center or the top-left side as origin.

Text

string Komodo.Core.ECS.Components.TextComponent.Text

getset

Text message to be rendered.

Width

override float Komodo.Core.ECS.Components.TextComponent.Width

get

X dimensional extremity.
